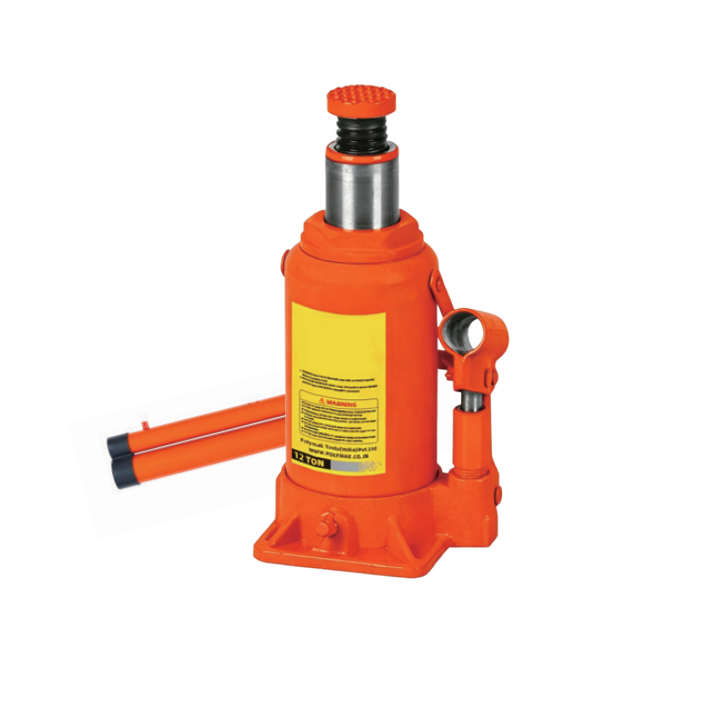

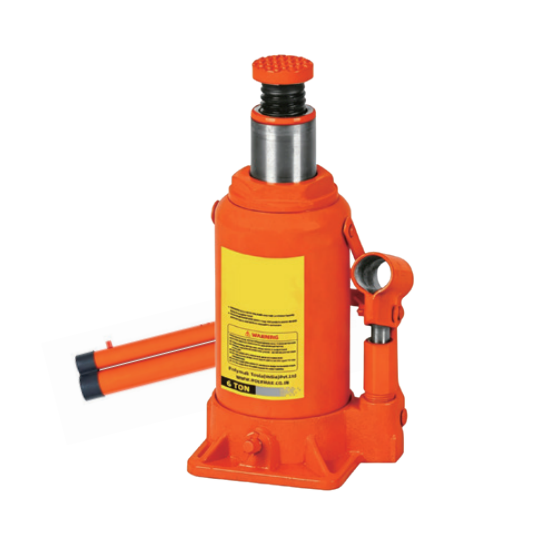

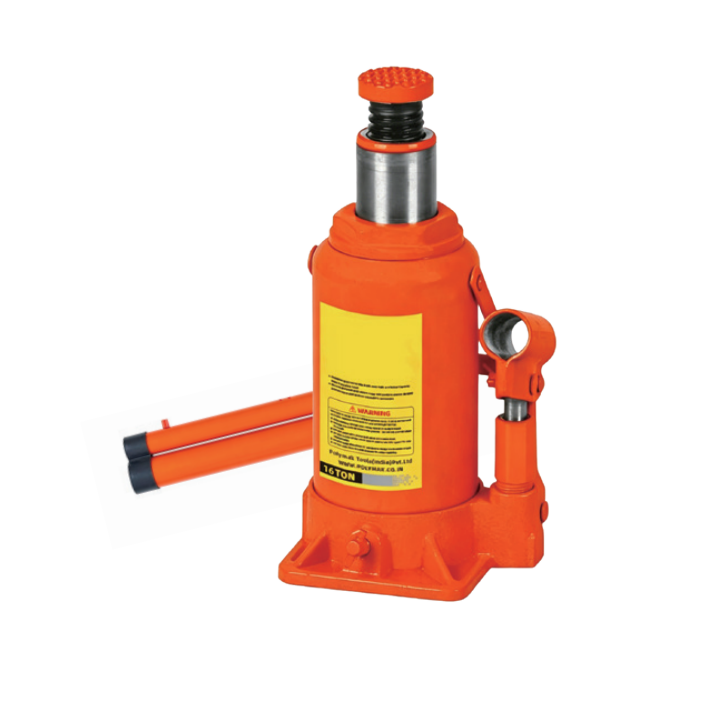

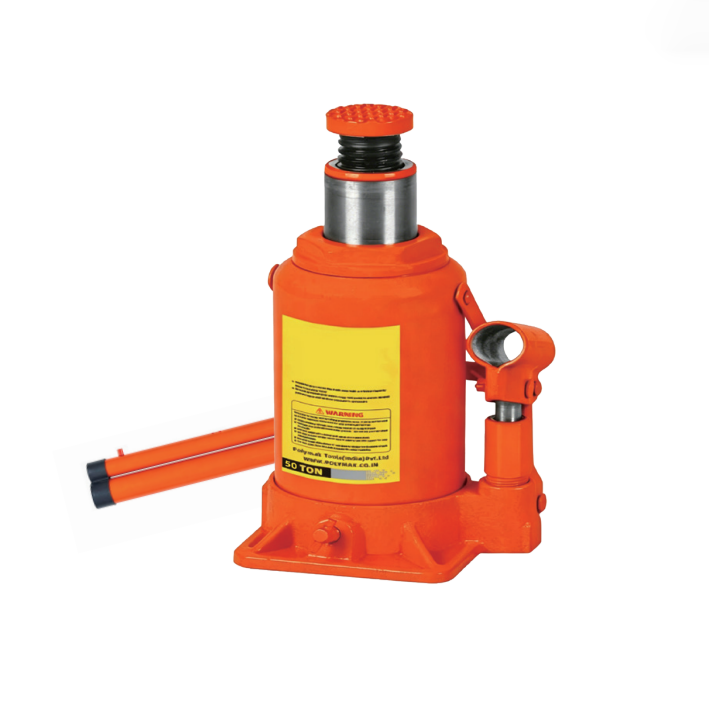

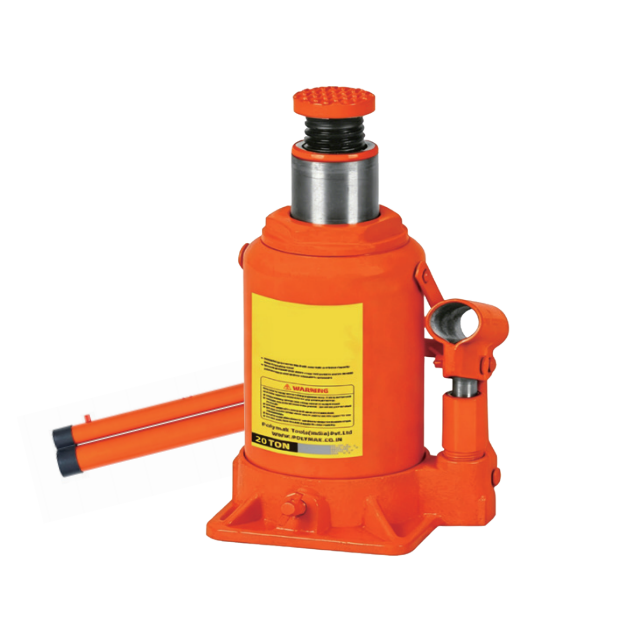

Hydraulic Bottle Jack
Hydraulic Bottle Jack
Mode | Capacity | Min.H(mm) | Max.H(mm) | Lifting.H(mm) | Adjust.H(mm) | Inner Qty | Carton Q'ty | PC/NW(kg) | DOCS NW(kg) | DOCS NW(kg) | Carton Size(cm) |
YH90202 | 2 TON | 278 | 278 | 80 | 50 | 1 | 10 | 2.1 | 21 | 22 | 49.5×21×18.5 |
YH90203 | 3 TON | 278 | 278 | 80 | 50 | 1 | 10 | 2.1 | 21 | 22 | 49.5×21×18.5 |
YH90204 | 4 TON | 180 | 350 | 110 | 60 | 1 | 5 | 2.8 | 14 | 15 | 53.5×22.5×21 |
YH90206 | 6 TON | 180 | 350 | 110 | 60 | 1 | 5 | 3.5 | 17.5 | 18.5 | 55.5×12.5×22.5 |
YH90208 | 8 TON | 200 | 385 | 125 | 60 | 1 | 5 | 4.5 | 22.5 | 23.5 | 56.5×13.5×23.5 |
YH90210 | 10 TON | 200 | 385 | 125 | 60 | 1 | 5 | 5.1 | 25.5 | 26.5 | 62.5×14.5×22.5 |
YH90212 | 12 TON | 210 | 395 | 125 | 60 | 1 | 4 | 6.3 | 25 | 26 | 62.5×14.5×22.5 |
YH90216 | 16 TON | 225 | 425 | 140 | 60 | 1 | 2 | 7.5 | 15 | 16 | 53×15.5×25 |
YH90220 | 20 TON | 235 | 440 | 145 | 60 | 1 | 2 | 9.7 | 18.5 | 19.5 | 21.5×17.5×25 |
YH90232 | 32 TON | 255 | 405 | 150 | 1 | 2 | 12 | 24 | 25 | 25×18×27.5 | |
YH90250 | 50 TON | 255 | 405 | 150 | 1 | 1 | 19 | 19 | 20 | 20.5×19×27 |
